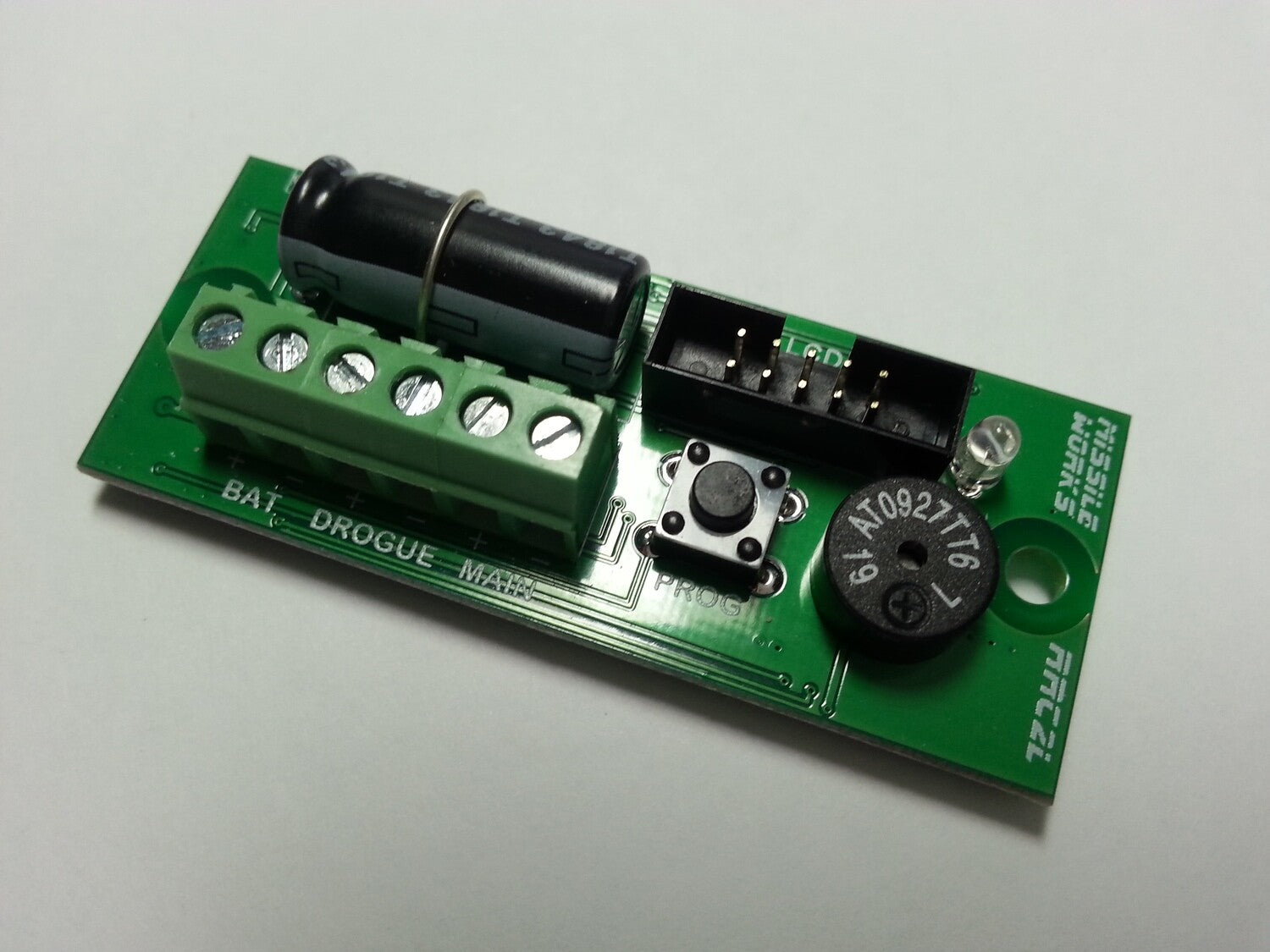

RRC2L Altimeter

The RRC2L is the perfect middle of the road dual-deployment altimeter, bridging the gap between switches and beeps and a laptop computer or smart device. The "L" in the name indicates the unit is LCDT Ready, providing comprehensive, human readable flight data analytics coupled with a powerful subset of recovery and flight controls inherited from the RRC3.

Thr RRC2L has a "pushbutton programmable main" altitude setting so it can perform standard dual deployment duties fully stand alone without the LCD, allowing you to upgrade operations when you're ready. This single, simple setting also makes it a perfect introductory dual deployment unit, fulfilling its "buy and fly" mission.

When the RRC2L is coupled with our LCDT Module, the unit provides a very comprehensive, human readable flight data analytics collection coupled with a subset of recovery and flight controls inherited from the RRC3.

The new 4th deployment mode (Main Output Control Sequence settings) provide an extremely flexible and capable collection of advanced control options, allowing users to create a custom control sequence using the MAIN Event output while still providing an independent and autonomous standard drogue event for recovery,

Specifications

Microcontroller
16MHz 16-bit MSP430 Series mCU

Pressure/Temperature sensor
MSI MS5607 Pressure sensor with 24 bit ΔΣ ADC

Operational Range
40K MSL recommend (100K MSL capable)

Arming Mode
Barometric / 300’ AGL

Battery Voltage
3.5 volts to 10 volts

Continuity/Firing Current (@9V)
50 µa / 3A for 1 second (Drogue & Main)
